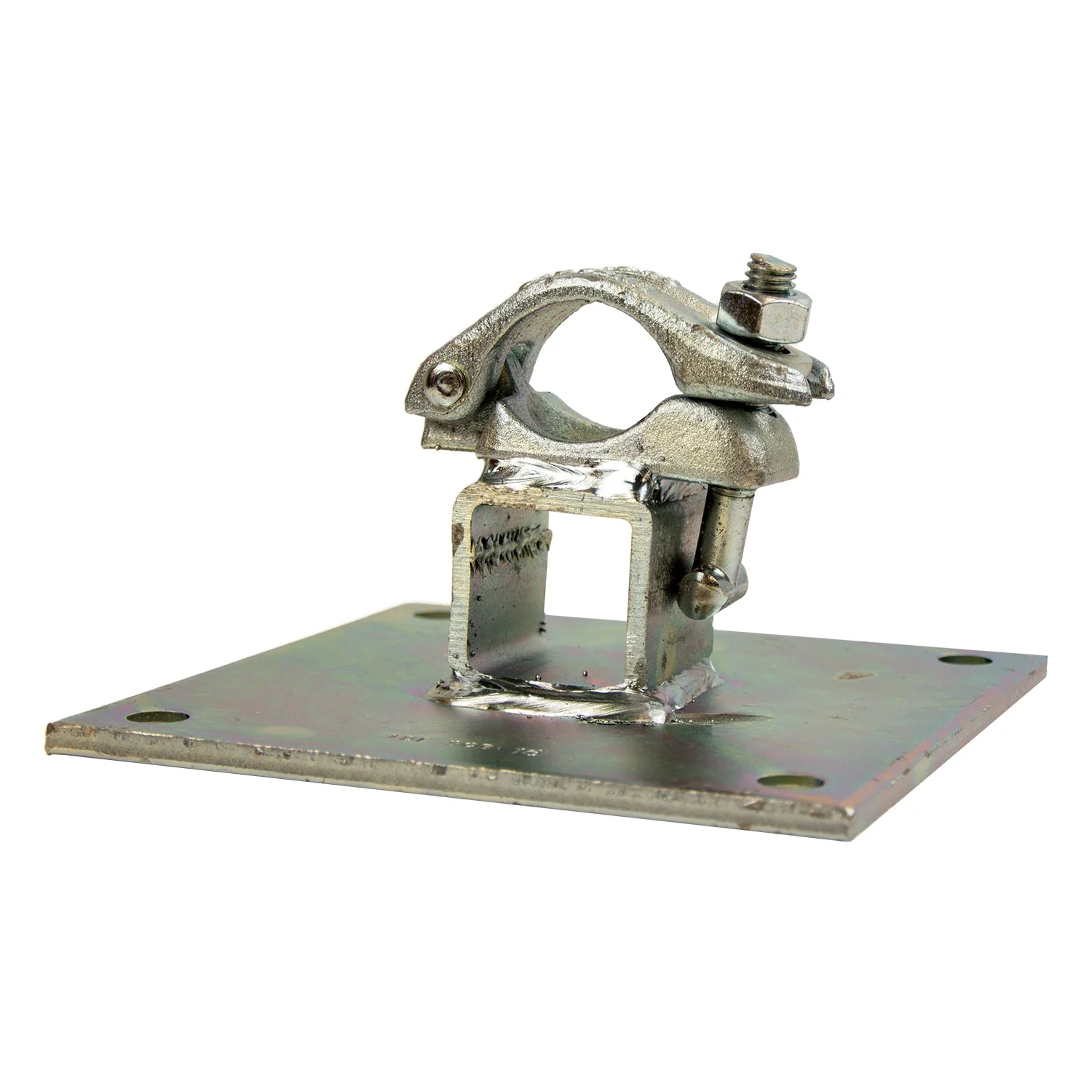

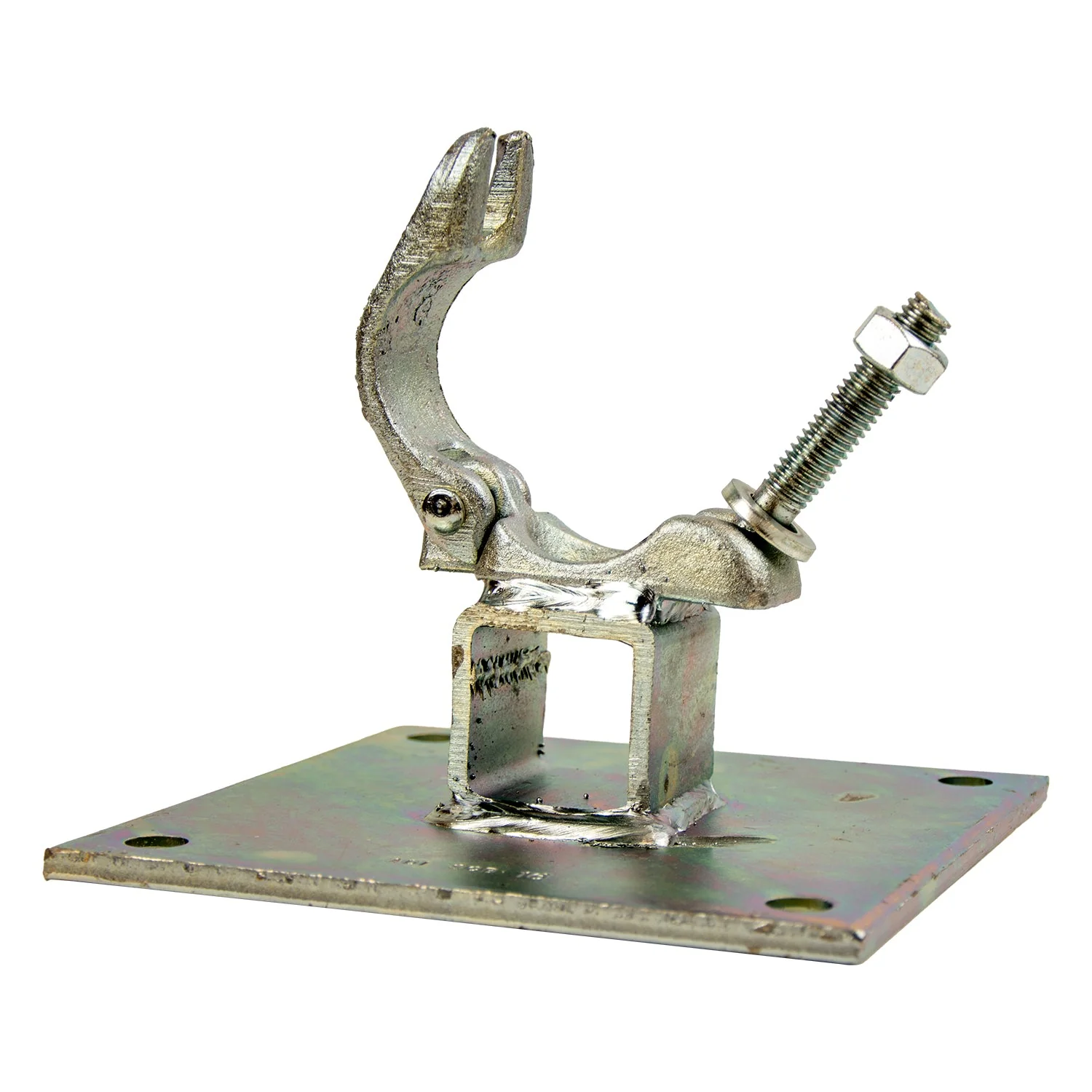

Heavy Duty Shear Tie Plate - 4 Hole
Discover the Heavy Duty Scaffold Shear Tie Plate.
This version comes with 4 x 14mm holes suitable for the 12mm Thunderbolt Screwbolts.
The plate measures 185mm x 185mm and the hole centres are at 150mm.
Load Data
- Recommended Tensile load is 10.0kN in concrete class C20/25.
- Recommended Shear load is 6.3kN in concrete class C20/25.
- When used with 4 no M12x75 Concrete Screw Bolts with embedment of 60mm.
- NB - Shear load data is partially based on the slip rating of a single drop forged coupler. If check fittings are used then shear strength on a single bracket is increased to 13.0kN.
- Suitability tests should be performed for any other base material or where the strength is unknown.
- Recommended loads are limited by suitability of base material and structure.
Buy yours today from Leach's.
